IP28 - Degree of protection provided by enclosures (IP Code)

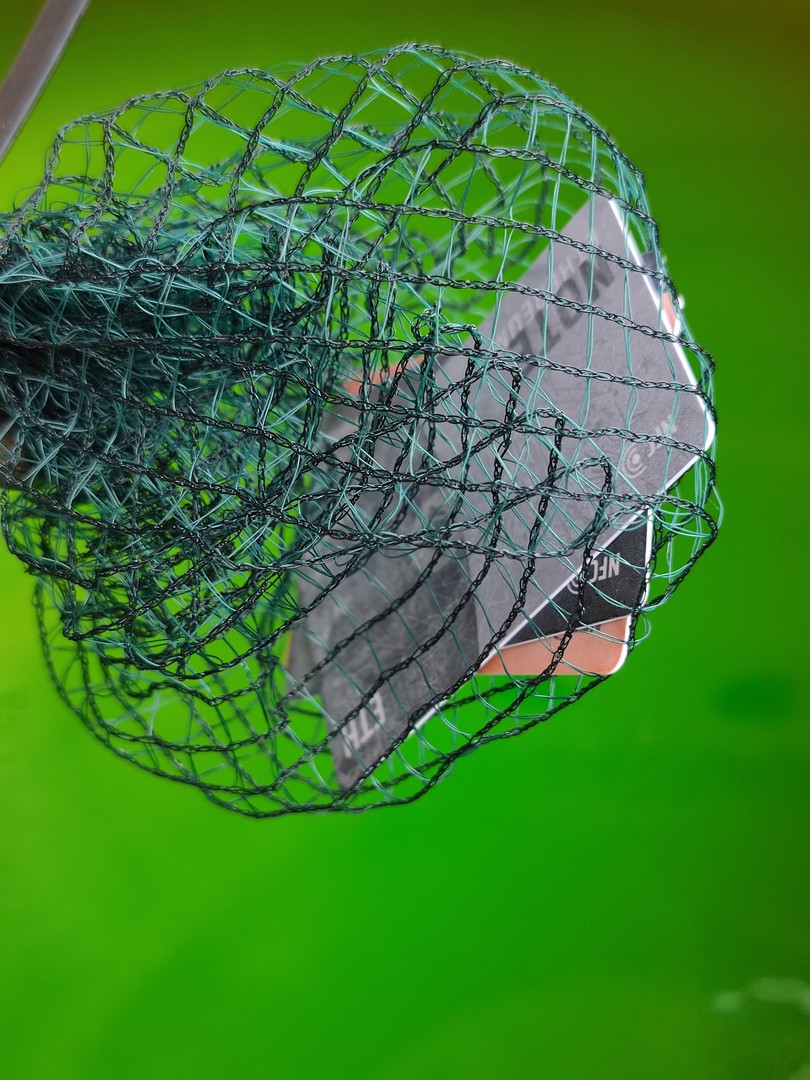

Prove ip28 in base alla CEI EN 60529, ISO 20653, CEI EN 60034-5

IP28 - IP2X IPX8

IP28 - IP2X IPX8

CEI EN 60529, ISO 20653, CEI EN 60034-5

Request an ip28 test



IP2X



Degree of Protection IP 20 rates the degree of protection provided against the intrusion of solids larger than
12 mm Ø (ie. body parts such as fingers).
The protection is satisfactory if adequate clearance is kept between the access probe and hazardous parts.

Access to hazardous parts
For this test is used the "Jointed Test Finger" which may penetrate to its 80 mm length, but the stop face
(Ø 50 ×20 mm) shall not pass through the opening.
Starting from the straight position, both joints of the test finger shall be successively bent through an angle of up to 90°
with respect to the axis of the adjoining section of the finger and shall be placed in every possible position.

Solid foreign objects
For this test is used a "Sphere" of 12,5 mm Ø shall not fully penetrate.

IPX8


Degree of Protection IP X8 rates the degree of protection against the effect of continuous immersion in water.
Unless there is a relevant product standard, the test conditions are subject to agreement between manufacturer and user, but they shall be more severe than those prescribed for IPX7 Test and they shall take account of the condition that the enclosure will be continuously immersed in actual use.
As for the IPX8 degree (the degree of immersion) we can reach depths of 9500 meters, 950 bars (the limit is the sample size).

Depth Pressure (bar) Pressure (psi)
Available Autoclave Dimensions
ø250mm h250mm
(up to 2 bar)
ø1090mm h1050mm
(up to 4 bar)
ø2000mm h3500mm
(up to 50 bar)
ø450mm h650mm
(from 450 to 950 bar)
ø1000mm h1500mm
(up to 450 bar)
ø2100mm h4000mm
(up to 450 bar)
1 meter0.1 bar1.45 psi YesYesYes NoYesYes
5 meters0.5 bar7.25 psi YesYesYes NoYesYes
10 meters1 bar14.50 psi YesYesYes NoYesYes
20 meters2 bar29.00 psi YesYesYes NoYesYes
40 meters4 bar58.00 psi NoYesYes NoYesYes
50 meters5 bar72.50 psi NoNoYes NoYesYes
100 meters10 bar145.00 psi NoNoYes NoYesYes
200 meters20 bar290.00 psi NoNoYes NoYesYes
300 meters30 bar435.00 psi NoNoYes NoYesYes
400 meters40 bar580.00 psi NoNoYes NoYesYes
450 meters45 bar652.50 psi NoNoYes NoYesYes
500 meters50 bar725.00 psi NoNoYes NoYesYes
600 meters60 bar870.00 psi NoNoNo NoYesYes
700 meters70 bar1015.00 psi NoNoNo NoYesYes
800 meters80 bar1160.00 psi NoNoNo NoYesYes
900 meters90 bar1305.00 psi NoNoNo NoYesYes
950 meters95 bar1377.50 psi NoNoNo NoYesYes
1000 meters100 bar1450.00 psi NoNoNo NoYesYes
1100 meters110 bar1595.00 psi NoNoNo NoYesYes
1200 meters120 bar1740.00 psi NoNoNo NoYesYes
1300 meters130 bar1885.00 psi NoNoNo NoYesYes
1400 meters140 bar2030.00 psi NoNoNo NoYesYes
1500 meters150 bar2175.00 psi NoNoNo NoYesYes
1600 meters160 bar2320.00 psi NoNoNo NoYesYes
1700 meters170 bar2465.00 psi NoNoNo NoYesYes
1800 meters180 bar2610.00 psi NoNoNo NoYesYes
1900 meters190 bar2755.00 psi NoNoNo NoYesYes
2000 meters200 bar2900.00 psi NoNoNo NoYesYes
3000 meters300 bar4350.00 psi NoNoNo NoYesYes
4000 meters400 bar5800.00 psi NoNoNo NoYesYes
4500 meters450 bar6525.00 psi NoNoNo YesYesYes
5000 meters500 bar7250.00 psi NoNoNo YesNoNo
6000 meters600 bar8700.00 psi NoNoNo YesNoNo
7000 meters700 bar10150.00 psi NoNoNo YesNoNo
8000 meters800 bar11600.00 psi NoNoNo YesNoNo
9000 meters900 bar13050.00 psi NoNoNo YesNoNo
9500 meters950 bar13775.00 psi NoNoNo YesNoNo

Summary

For larger products, we can accommodate samples in an autoclave with a diameter of 2 meters (2000 mm) and a height of 3.5 meters (3500 mm), simulating a depth of 500 meters (50 bar).
For smaller samples (maximum dimensions 9x4 cm), our small autoclave offers cost-effective testing up to a depth of 1500 meters (150 bar).
For medium-sized samples (up to 95x95x100 cm), we frequently use an autoclave for IPX8 tests at depths up to 40 meters (4 bar).
For tests requiring higher pressures, we offer additional configurations:

Autoclave Dimensions for IPX8 Tests

Type of Autoclave Maximum Sample DimensionsMaximum Depth Pressure (bar)Pressure (psi)
Large Autoclaveø 2 meters (2000 mm), h 3.5 meters (3500 mm)500 meters50 bar 725.00 psi
Medium Autoclave95x95x100(h) cm 40 meters4 bar58.00 psi
Small Autoclave9x4 cm1500 meters 150 bar 2175.00 psi
High Pressure Autoclaveø1000 mm x h1500 mm4500 meters450 bar6525.00 psi
High Pressure Autoclave for Large Samplesø2100 mm x h4000 mm4500 meters450 bar6525.00 psi
Compact Ultra High Pressure Autoclaveø450 mm x h650 mm9500 meters950 bar13775.00 psi

We are leaders in IP certification for products of any size.
For heavy infrastructure and large non-transportable systems, we perform On-Site IP testing at your facility.
